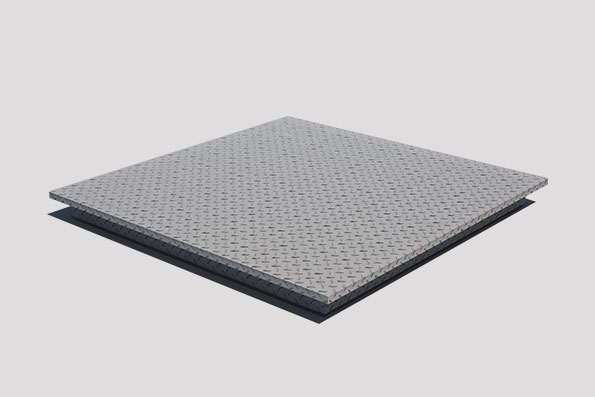

Small Loadometer
xdb01

Small Loadometer

Small Loadometer is different from the platform, a smaller truck scale electronic weighing, easy to use and efficient, accurate measurement, the reaction rate sensitive, easy to move, without foundations characteristics, as long as the plane is in the same place can give the goods free weighing four corners at each corner and one each sensor, simple structure.

Weighbridge type: single floor scale, double floor scale, floor scale single-buffered, double buffered single floor scale

  • PRODUCT FEATURES
  • Structural features
  • TECHNICAL PARAMETER
  • Configuration table

1. intelligent battery identification, automatic shutdown to protect the battery
2.0 unit price setting, storage and call direct trade settlement
3. overload 130% F.S instrument will lock overload value display
4. number, tare 500 storage, power protection
5.1000 weighing records storage; various statistical reports
6. according to statistics of the license plate number; Press Num classification system, enabling daily report, monthly report statistics
7. Chinese filling fast printing
8. two-way RS-485 | RS-485 communication interface optional

1. U-beam structure, tread plate or plates;
2. material: carbon steel, stainless steel veneer or solid stainless steel;
3. steel weighing platform sandblasting paint handling, surface polished brushed stainless steel;
4. with four alloy steel or stainless steel sensor;
5. Options: ramps, printers, instrumentation column, mobile stand。

Table size(mxm)Maximum weighing(t)Dividing the value(kg)Say Height(mm)net weight(kg)
1×11/2/30.2/0.5/192105
1×15192115
1.2×1.21/2/30.2/0.5/192130
1.2×1.25192145
1.2×1.51/2/30.2/0.5/192155
1.2×1.55192170
1.5×1.51/2/30.2/0.5/192185
1.5×1.55192202
1.5×2.01/2/30.2/0.5/1100230
1.5×2.051100260
1.5×2.0102135350
2.0×2.01/2/30.2/0.5/1100290
2.0×2.051100335
2.0×2.0102135450
bandwidthStandard configurationOptional
Said TaiwanCarbon steelstainless steel
sensoralloy steelStainless steel / Explosion
Junction BoxCarbon steelStainless steel / Explosion
meterPlastic instrumentStainless steel / explosion-proof / print

Optional accessories
