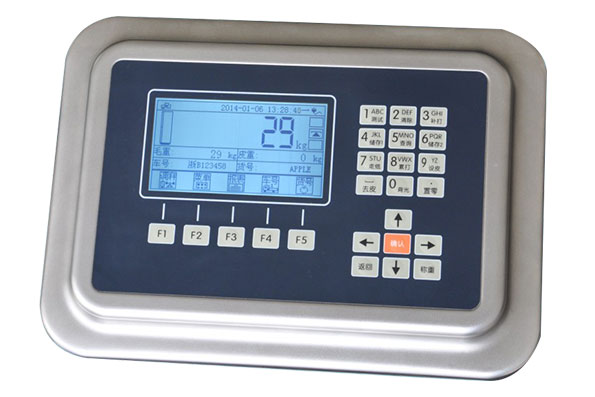

D29 Electronic weighing instruments
yb06

D29 Electronic weighing instruments

D29 electronic weighing scales weighing instruments will all tune in the form of a graphical interface displayed in front of the operator, so that adjusting the scale becomes intuitive and efficient; the end-user interface is no longer abstract strokes interface, operating a variety of common errors or failure to conduct prompt text or graphics to make troubleshooting easy and accurate; having the display is clearly weighing records storage management interface that enables weighing records management becomes easy. For digital static truck scale systems.
  • PRODUCT FEATURES
  • TECHNICAL PARAMETER

1. graphic text display, the display image becomes rich;
2. Each operation has graphic details, to make the complex simple setup;
3. a variety of digital image tone scales scales interface makes adjusting the scale more precise;
4. support Chinese and English input, number of female characters sequencer / digital display Jieke make more complete weighing records;
5. support for dynamic instrument to improve the E-type anti-cheating design of cryptographic protocols and K agreements;
6. using multiple electrical isolation protection design, improve the reliability of truck scale systems;
7. support the conventional C, E, and K-type communication protocol;
8. with support column angle sensor test, the screen displays the image in order to install the status of each sensor ( optional)
9. with automatic angle adjustment, lose weight angle adjustment, output shaft adjustment angle and angle adjustment coefficient functions to meet the different circumstances of the scene;
10. 08 series instruments support encryption and JMQ01 a key encryption;
11. through the RS232 / RS485 or Ethernet query weighing platform and sensor status.

1. the digital sensor interface: RS485 mode, then 12 in the case of digital sensors can be connected to the bus 75 meters
2. the transmission rate: 9600,19200bps;
3. the digital sensor Power supply: DC12V / 750mA
4. the number of digital sensors connection: 1 – 16
5. the digital sensor communication protocol: Heng Cheng C protocol, C custom protocols, E agreement, E and K custom protocol agreement
6. Display: 240 * 128, black and white LCD display;
7. large-screen interfaces: 20mA current loop constant current source serial output, 600 baud rate, transmission distance ≤100 meters;
8. serial communication interface: RS232 standard configuration and RS485, a baud rate of 600 19200 optional
9. the printer interface: configuration standard parallel interface can be connected with EPSON LQ-300K + II}, LQ-300K, LQ-680K, LQ a 730K, LQ-1600K (+), the Panasonic KX-P1131, KX-P 1121 , line printer and Xi concubine DS-300, etc. Continuous Computing du Temple POS58IV, Kawasaki AB-300K printer.
10. an Ethernet interface: 10 / 100Mbps
11. Data storage: can store 1000 group license plate number tare, 4500 group weighing record date, 300 groups weighing record date is incomplete
12. meter power: AC 110 a 220V, 50 a 60Hz;
13. appearance: 318 * 218 * 100mm
14. weight: about 2.8 kg
